Small Mobile Concrete Batching Plant Machine

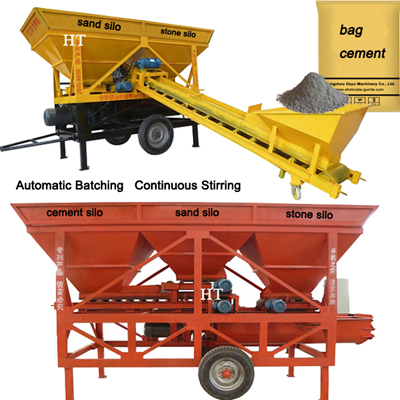

New Type Small Mobile Concrete Batching Machine Price For Sale

New Type Small Mobile Concrete Batching Machine Price For Sale

Model Number: LJ30
Brand Name:HT
INQUIRY BUY NOW

New Type Small Mobile Concrete Batching Machine Price For Sale:

Mobile Concrete Batching Machine:
1 New type LJ Series concrete batching machine is one kind of stirring and mixing machine.It can mix fluidity concrete, plastic concrete, hard concrete and other proportioning concrete.

2 LJ Series mobile concrete Batching machine adopts the semi-pulling design.With running system and standard traction pin,LJ series hauling type mobile concrete mix machine can be dragged by a tractor, which enables convenient and quick movement and installation without foundation and debugging.Users do not need to install.

3 The machine has various operational modes as fully automatic, semi-automatic and manual and so on, a high degree of automation. Mainly composed of mixer, the material weighing system, conveying system, material storage system, control system and steel structure.

Small Concrete Batching Machine:

Model	LJ30
Productivity	20-30 M3/h
Mixing power	11 KW
Mixing blades	2x13(26 pieces)
Storage hopper power	1.5 KW
Storage hopper capacity	1.5 M3
Storage hopper amount	2 or 3
Cement conveying mode	Feeding conveyer from bag cement or from cement silo
Feeding hopper power	2.2 KW
Feeding hopper capacity	0.5 M3
Max aggregate diameter	40 Mm
Discharging height	0.8--1.5 m
Batching method	Automatic
Working way	Forced continuous mixing
