Curb Pouring Machine--HT400

Road Kerb Stone Machine Kerbstone Making Machine

Brand Name:HT
Model Number: HT400
Certification: ISO
Start-up Mode: Electric Start
INQUIRY BUY NOW

Road Kerb Stone Machine Kerbstone Making Machine:

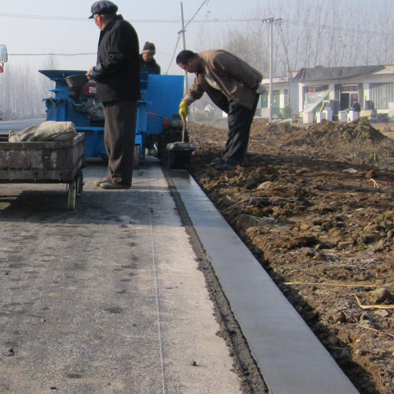

The Road Kerb Stone Machine is used for road shoulder sliding film action, drainage ditch sliding film operation, curb forming operation, etc. This type of kerbstone making machine is the carrier of engineering standards, including asphalt products and cement concrete road construction projects The industrial equipment for the curbs and drainage ditches on both sides of the center is composed of a walking mechanism, a vibration mechanism, a forming mechanism, a generator and a power distribution.

Technical Parameters Of Road Kerb Stone Machine:

HT400	Specifications		Features
Curbsize range	Width≤600mm,height≤460mm		Is widely applicable for curbs
Parameters of engine set	Fuel	diesel	Single-cylinder water-cooled diesel engine, simple and reliable
	Power	8kw
	Output voltage	380v,3 phases
	Start-up mode	Electric start
	Radiating way	Water cooling
Paving speed	1-4m/min		Imported CVT (Continuously Variable Transmission), facilitate the adjustment of the most suitable paving
