Curb And Gutter Machine--HT2000

Concrete Landscape Curbing Machine, Slip Form Paver

Brand Name: HT
Model Number: HT2000
Certification: ISO
Place of Origin: Hebei, China (Mainland)
INQUIRY BUY NOW

Concrete Landscape Curbing Machine, Slip Form Paver:

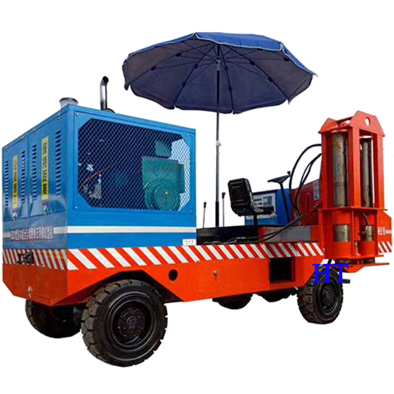

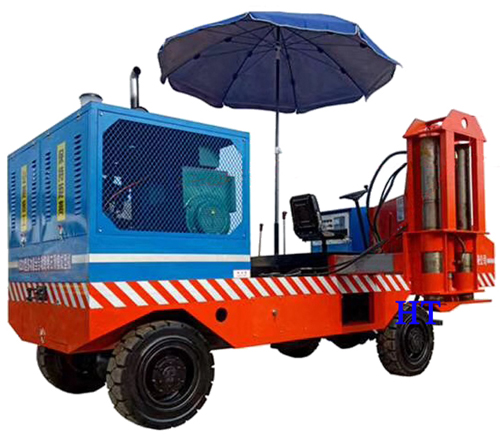

HT2000 concrete landscape curbing machine is the special equipment for cement concrete road-building curbs.
This kind of slip form paver can pave the curb range:
Width≤2000mm, Height≤600mm, besides paving big curbs, it also can pave small narrow road.
1 Automatic leveling, automatic steering , remote control.
2 Self-Balancing,adapt to the more complex working conditions.
3 All time 4 wheels drive, off-road tires, can run on all kinds of road.
4 Strong power,can drive the concrete material truck under the slope 5%.

Technical Parameters Of Concrete Landscape Curbing Machine:

HT2000	Specifactions		Features
Curb Size Range	Width≤2000mm,height≤600mm		Suitable for big kerbs
Parameters Of Engine	Fuel	Diesel	Inline four-cylinder naturally aspirated
	Power	60kw
	Start-up Mode	Electric Start
	Rotation Speed	2000 Rpm
	Radiating Way	Water Cooling
Digital Leveling System	Leveling Scope:±40mm		Automatic temperature adaptation Voltage overload protection
Paving Speed	1-16m/Min		Imported CVT (continuously variable transmission) Adjust machine to the most suitable state Electromagnetic speed controllerfour speed gearbox Ensure stepless adjustment of paving
Hopper Capacity	1.2 m³		Bigger volume, reduce the number of shutdowns caused by insufficient feeding
